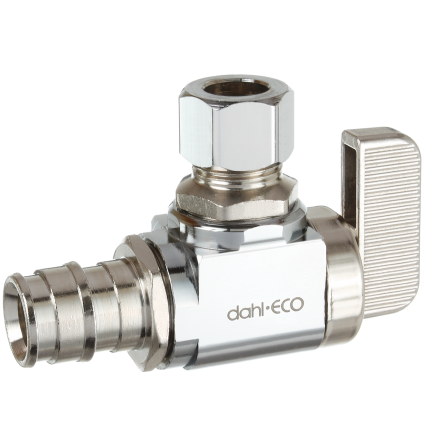

dahl 1/2″ F1960 x 3/8″ OD Comp, Angle Stop
Zoom the image with the mouse

dahl 1/2″ F1960 x 3/8″ OD Comp, Angle Stop

Out of stock Many in stock
$0.00
dahl is known to be the market leader in quality. This is evident in the weight of their products. They are all backed by...
Size Guide

 quality. This is evident in the weight of their products. They are all backed by a lifetime warranty and are manufactured in Canada using only North American materials. Dahl pioneered the mini-ball™ valve and continue to evolve with the times.


Specifications

Material Lead-Free Brass
Pattern Angle
Finish Chrome Plated
Inlet Pipe Type PEX-F1960
Inlet Size 1/2 F1960 Expansion Connection
Outlet Size 3/8 OD Comp

Technical Information

611-PRPX3-31 Submittal Sheet

611-PRPX3-31 CDN-ASTM-F1960-Valves


Installation Instructions

INSTRUCTIONS:

Instructions for 511-PRPX3-31

Turn off water supply. Install product. Turn on water supply, check for leaks. dahl assumes no responsibility for failure due to improper installation. Abide by local plumbing codes. Do not expose to corrosive agents.

F1960 COLD EXPANSION CONNECTION FOR PEX-A ONLY: Follow tube manufacturer’s instructions. Warning: Do not attempt to use PEX connections with Poly-B tubing or vice versa.

COMPRESSION ON COPPER PIPE: Do not use pipe dope or PTFE tape. Pipe must be clean, de-burred, round, & cut square. Slide nut, then ring, then valve onto pipe. Tighten firmly with small wrench. DO NOT OVER-TIGHTEN. Compression on plastic tube: Follow tube manufacturer’s instructions; Special ring, nut, or insert may be required.
